ESD Packaging Tubes for Electronic Components

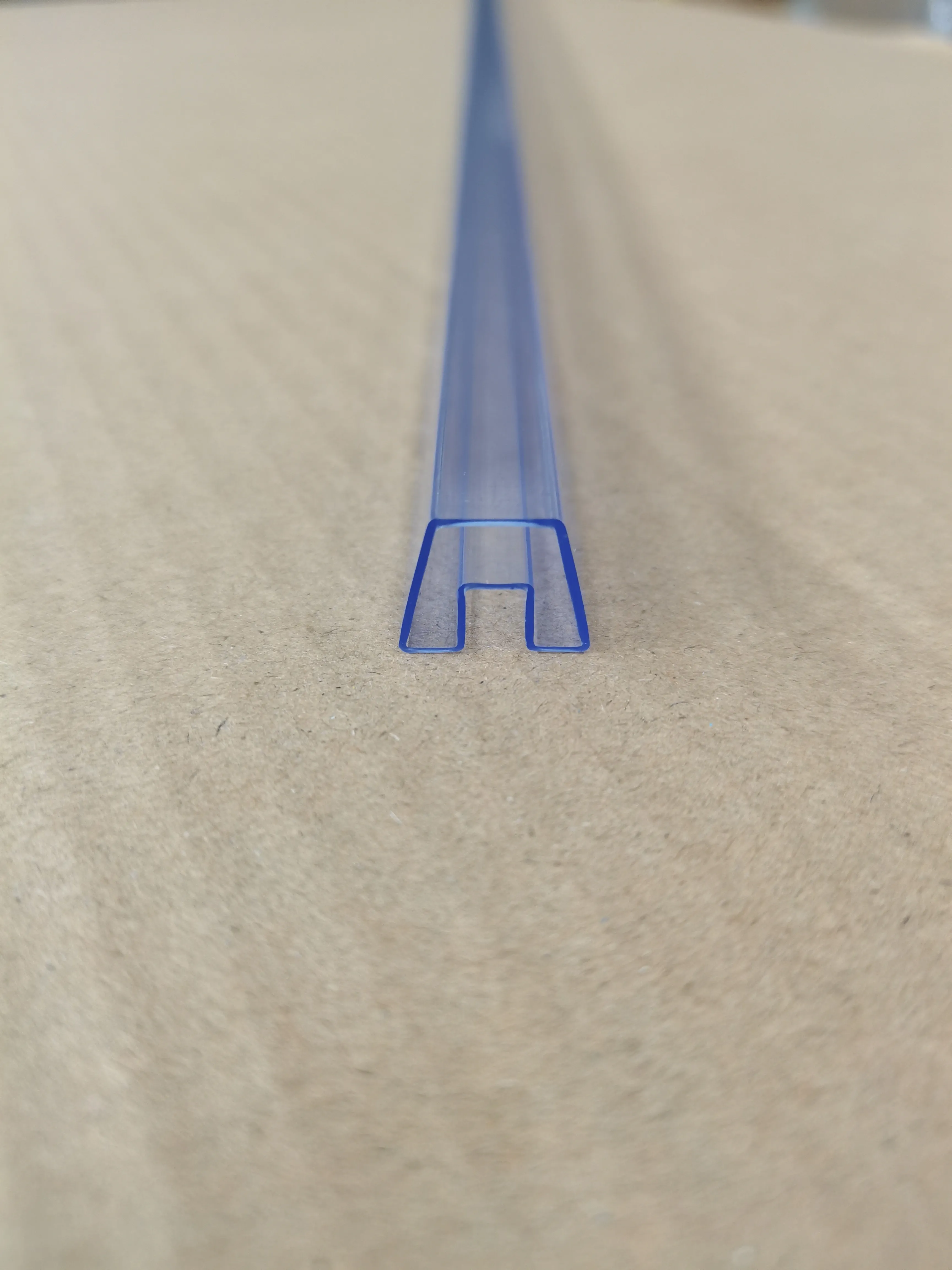

These custom IC packaging tubes hold electronic components in a controlled orientation during storage, transport and production handling. They can be reviewed for IC, sensor, connector and module packaging across electronics applications, including automotive electronics. The extruded profile is selected around the actual component body, leads and loading direction.

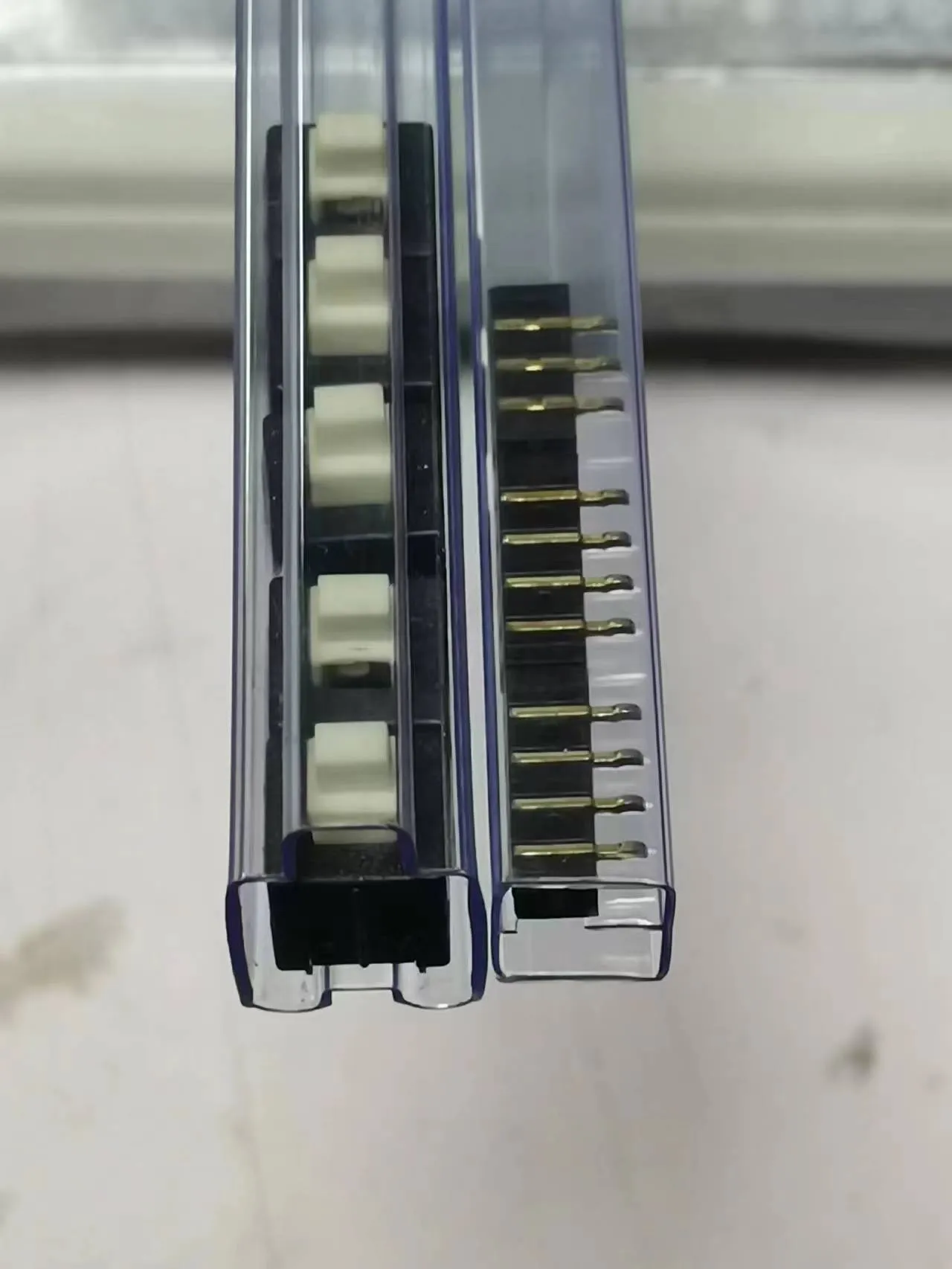

A tube should support the part without pressing on fragile leads or allowing it to rotate. Send a component drawing or sample so that the internal profile, clearance and end closure can be reviewed together. External tube dimensions alone do not establish whether the part will fit.
Configuration Options
| Material options | PVC, PP, HIPS, PETG and PC; selection depends on rigidity, visibility and the required ESD performance. |
|---|---|
| Profile | Square, rectangular, stackable, snap-on or irregular profiles, subject to the component drawing. |
| Dimensions | Custom tube length and wall thickness; confirm the internal clearance and external dimensions on the drawing. |
| ESD requirement | Specify the required electrical resistance, test method and conditioning requirements for material or surface-treatment review. |
| End closure | Matching end plugs can be reviewed for part retention, loading and unloading. |
| Ordering | Request a quotation with the drawing, material, quantity and delivery destination. Confirm tooling and sample timing separately. |
What to Check Before Approving a Tube
- Component fit: identify the maximum body and lead dimensions, tolerances and any surfaces that must not contact the tube.
- Loading: specify manual loading or the intended feeder. Review entry clearance and the direction in which parts must leave the tube.
- Handling: check the loaded tube length, end-plug retention and stacking arrangement for the actual packing process.

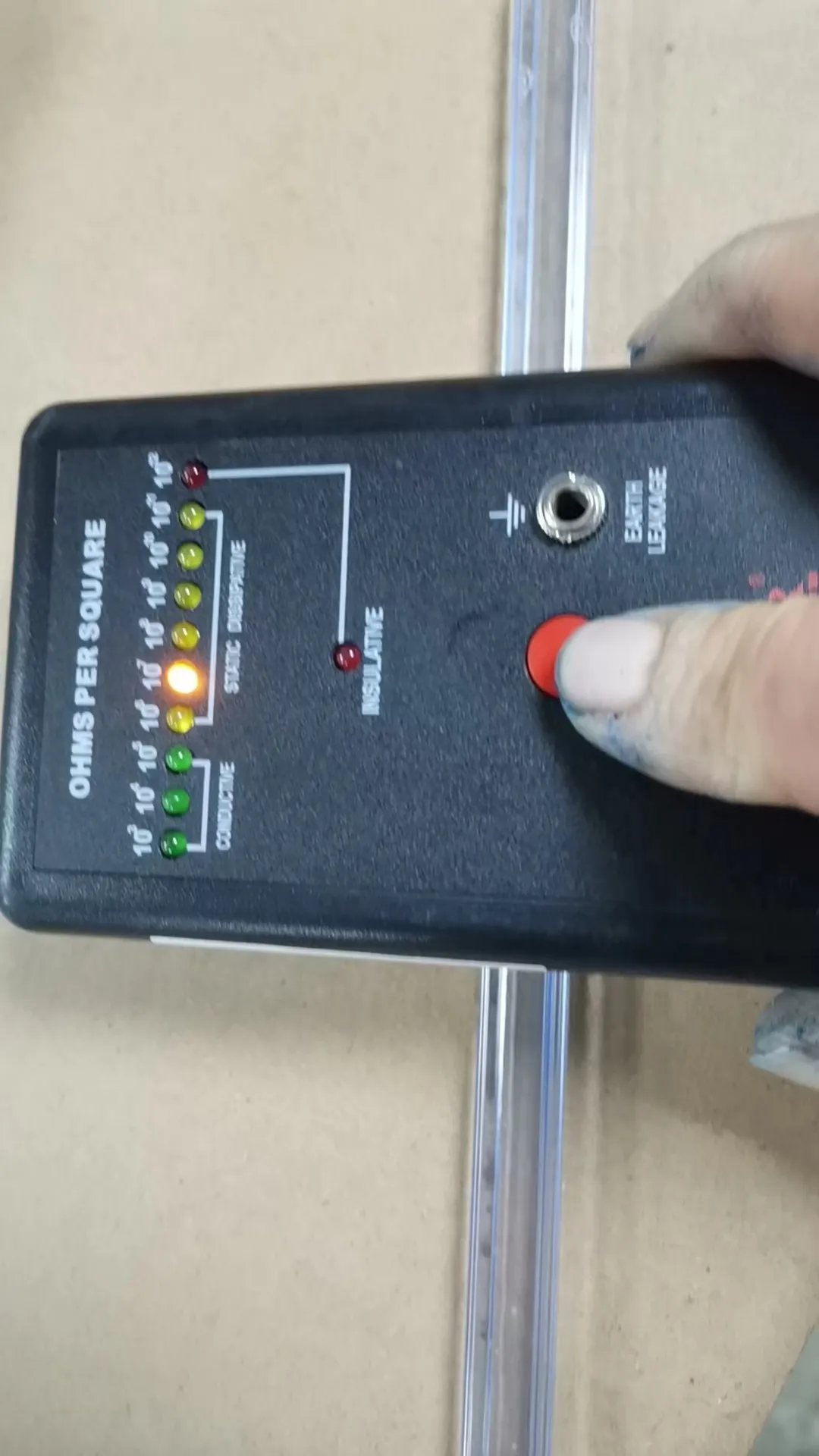

- ESD acceptance: agree the electrical test method and acceptance criteria for the selected material. Color or transparency alone does not verify ESD performance.
- Sample approval: trial actual components in the proposed tube and check unloading, lead clearance and closure before approving volume production.
Packaging Tube Questions
Can these tubes be used for components other than automotive ICs?
ICs, sensors, connectors and modules can be reviewed. Suitability depends on the component geometry, handling conditions and required ESD performance; the application name alone is not enough to approve a design.
How do I choose between PVC, PETG and PC?
Start with the required rigidity, visibility and handling conditions, then confirm an ESD material or treatment option. Send any material restrictions with the drawing so they can be considered before samples are made.
When should I use tubes instead of carrier tape?
Use a tube when the part and loading process suit a linear profile. If your line requires pocket-by-pocket tape feeding, review anti-static SMD carrier tape instead. Confirm compatibility with the actual feeding equipment.
What documentation should I request?
Request the agreed dimensional drawing and applicable material, ESD and compliance documentation for the quoted configuration. Confirm the scope and validity of any company certificate or product test report; they describe different things.
Request a Packaging Tube Review
Send the component drawing, material preference, tube length, end-plug requirements, target resistance and order quantity. Include a photo of the current packaging if available. Contact ACE DELIXIN for a specification review and quotation, or compare the ESD packaging tube range.
