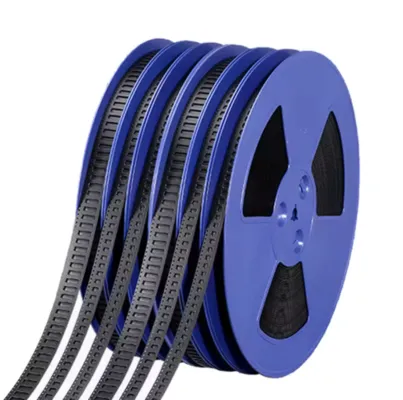

High-Precision Carrier Tape for IC and SMD Packaging
High-Precision Carrier Tape for IC and SMD Packaging
Product Details
Place of Origin:CHINA
Brand Name:ACE DELIXIN
Certification:ROHS,SGS
Model Number:8mm-88mm
Payment & Shipping Terms
Minimum Order Quantity:1000
Price:Discussable
Packaging Details:Carton
Delivery Time:5–8 working days
Payment Terms:Discussable
Product Description
High-Precision Carrier Tape for IC and SMD Packaging

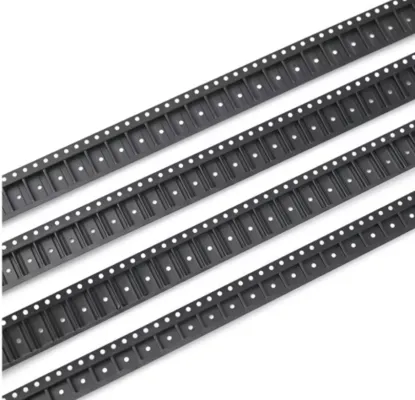

This embossed carrier tape is designed for accurate component positioning and stable feeding on high-speed SMT packaging and placement equipment. Controlled pocket and sprocket-hole geometry helps reduce feeding errors while cover tape closes the pockets against dust and component movement.
Performance Features
- Precision-formed pockets support consistent orientation of ICs and other SMD components.
- Controlled sprocket-hole position supports repeatable indexing on compatible equipment.
- Anti-static material options help protect electrostatic-sensitive parts.
- Custom tape width, pocket depth, pitch and material can be developed from a drawing or sample.
- Matching cover tape and reels are available for a complete packaging configuration.
Typical Specification
| Tape width | 8–88 mm, customizable |
|---|---|
| Application | IC, LED, connector, sensor and other SMD component packaging |
| Color | Black or custom, depending on material |
| ESD option | Selected according to the component requirement |
| Certification | RoHS and SGS |
Dimensional Confirmation
Any required positional tolerance, including a ±1.5 μm target, must be reviewed against the specific tape width, material, pocket design and measurement method. Provide the component drawing, EIA standard requirements, equipment model and inspection criteria for feasibility confirmation before tooling.
